CUSTOM APPARATUS · BUILT WITH PURPOSE

Custom apparatus currently on order and in production at Dedicated Emergency Vehicles.

UPCOMING DELIVERY

McLean Fire District — McLean, New York

DEV-USA 3000 Gallon Tanker Pumper

4th Quarter of 2026 Delivery!

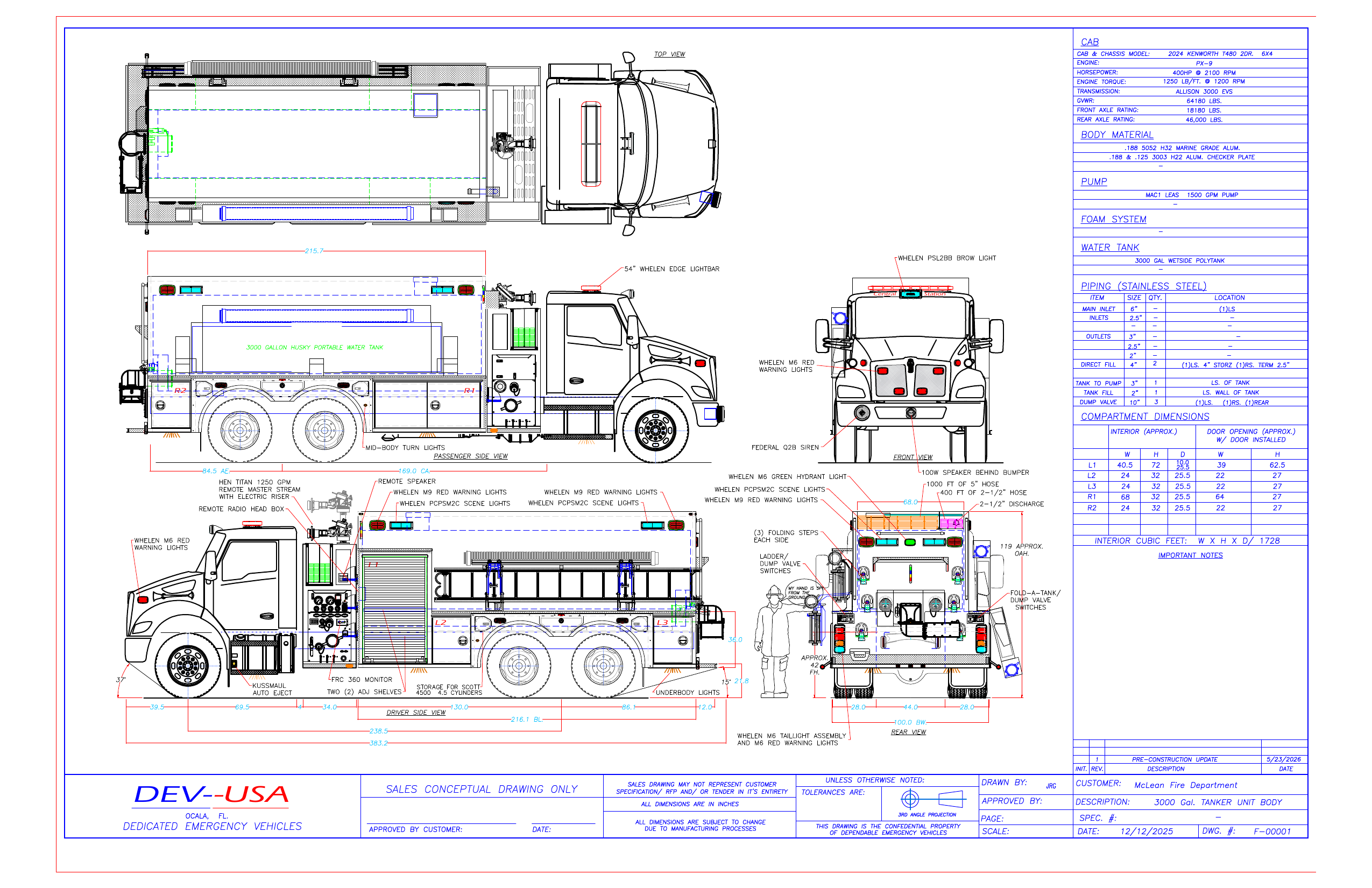

Conceptual drawing of the McLean Fire District 3000 gallon tanker pumper on a Kenworth T480 chassis
Conceptual drawing — click to view the full-size PDF.

Build Highlights

  • Kenworth T480 450hp Chassis
  • Custom Cab Console
  • On-Spot Tire Chains
  • Custom Designed 3/16” All Aluminum Body
  • Signature 4 SCBA Compartments
  • Kussmaul Chief Series Battery Charger with Auto-Eject with Integrated Display
  • Whelen CORE Light System with DVI and Cruise Modes
  • Whelen Pioneer Scene Lights
  • Federal “Q” Siren
  • FRC inView 360 HD Video System
  • MAC1 TACS 1500gpm Stainless Steel Fire Pump
  • FRC Pump Boss Max Governor
  • HEN Electric Deck Gun
  • Trident Auto Air Primer System
  • Trident Thermal Management System
  • ESD 3000 Gallon Poly Water Tank
  • Zico QUIC-LIFT Electric Ladder Rack
  • Zico QUIC-LIFT Hydraulic Portable Pond Lift
  • A H Stock Electric Dump with 180-degree Swivel
  • Two (2) 4.0” Fireman’s Friend Rear Tank Fills
DOWNLOAD THE DRAWING (PDF)

UPCOMING DELIVERY

Hartwick Fire Company #1 — Hartwick, New York

DEV-USA 2000 Gallon Tanker Pumper

1st Quarter of 2027 Delivery!

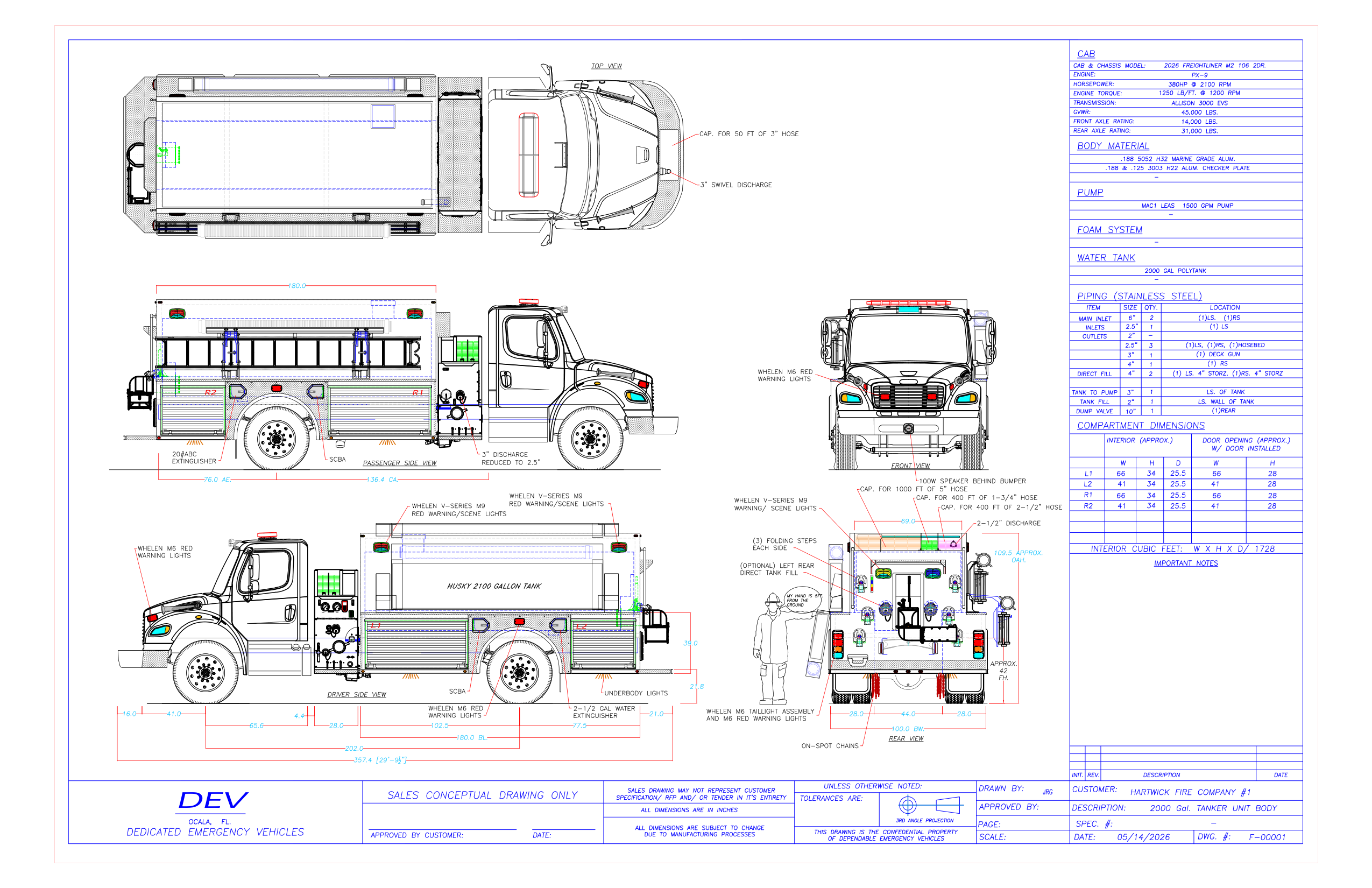

Conceptual drawing of the Hartwick Fire Company #1 2000 gallon tanker pumper on a Freightliner 106 Plus chassis
Conceptual drawing — click to view the full-size PDF.

Build Highlights

  • Freightliner 106 Plus 360hp Chassis
  • Custom Cab Console
  • On-Spot Tire Chains
  • Custom Designed 3/16” Interlocked All Aluminum Body
  • Amdor Roll-Up Doors
  • Signature 4 SCBA Compartments
  • Blue Sea Battery Charger with Kussmaul Auto-Eject
  • Whelen CORE Light System with DVI and Cruise Modes
  • Whelen M9V2R Combination Warning and Scene Lights
  • Safety Vision Rear Backup Camera System
  • MAC1 TACS 1250gpm Stainless Steel Fire Pump
  • FRC Pump Boss Max Governor
  • Extended Front Bumper with a 3.0” Discharge for Pumper Relay Feed
  • Trident Auto Air Primer System
  • Trident Thermal Management System
  • ESD 2000 Gallon Poly Water Tank
  • Zico QUIC-LIFT Ladder Rack
  • Zico QUIC-LIFT Hydraulic Portable Pond Lift
  • A H Stock Electric Dump with 180-degree Swivel
  • One (1) Fireman’s Friend Rear Tank Fill
DOWNLOAD THE DRAWING (PDF)

UPCOMING DELIVERY

Centerville Fire Department — Centerville, Georgia

DEV-USA 1750gpm Mini PLUS Pumper

1st Quarter of 2027 Delivery!

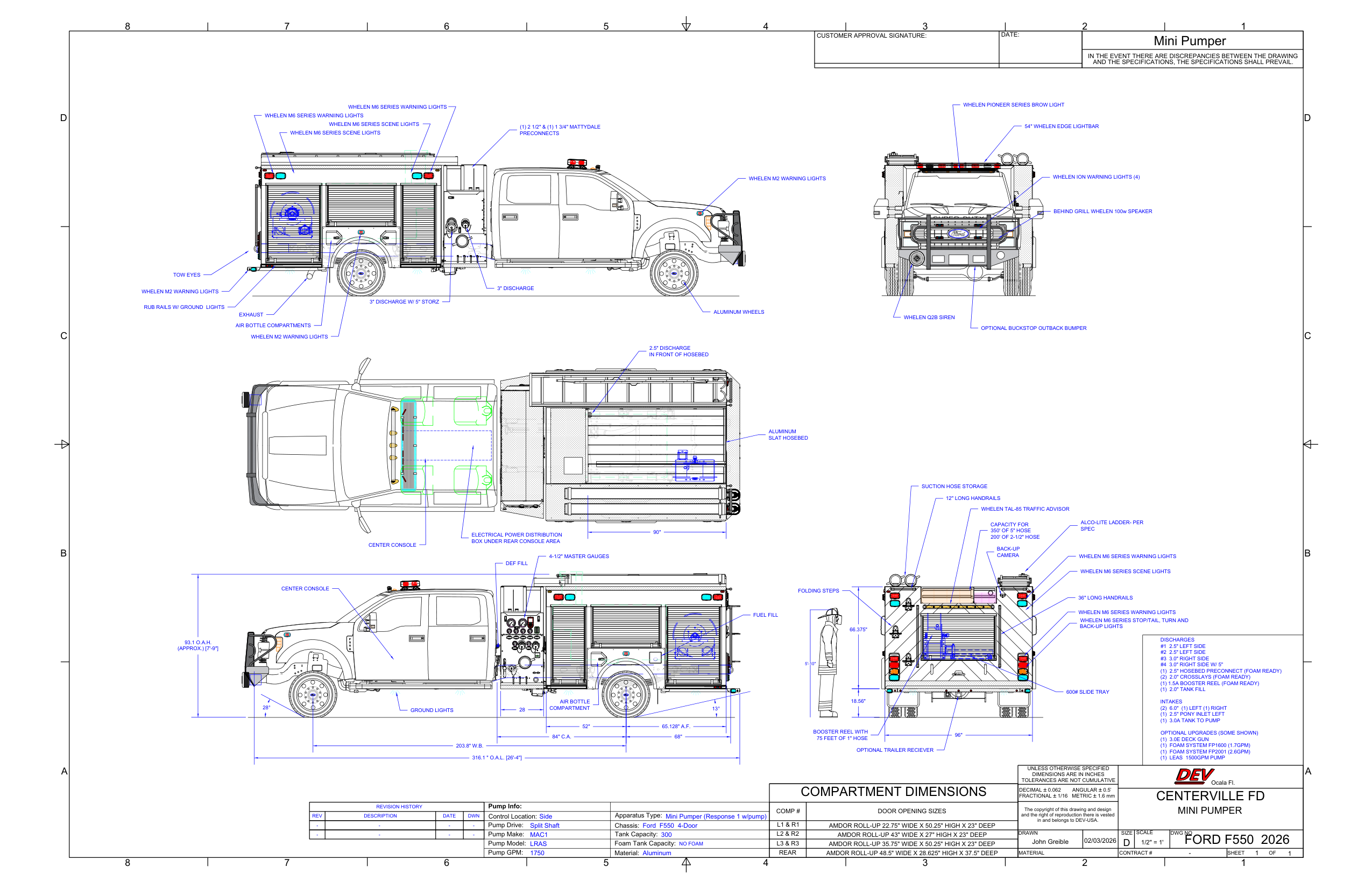

Conceptual drawing of the Centerville Fire Department 1750gpm Mini PLUS Pumper on a Ford F550 4x4 crew cab chassis
Conceptual drawing — click to view the full-size PDF.

Build Highlights

  • 2027 Ford F550 4×4 Crew Cab Chassis
  • Custom Cab Console – Extended into Crew Cab
  • Bostrom Crew Cab SCBA Seats
  • Class IV Trailer Receiver
  • Custom Designed 3/16″ Interlocked All Aluminum Body
  • Amdor Rollup Doors
  • Signature 4 SCBA Compartments
  • MAC1 LRAS 1750gpm Stainless Steel Fire Pump
  • FRC PumpBoss Max Governor
  • Trident Auto Primer System
  • Trident Thermo Management System
  • Hannay Booster Hose Reel
  • 300 Gallon ESD Poly Water Tank
  • Xantrex Freedom Pro 3000-watt Inverter / Charger System
  • Kussmaul Auto Eject Shore Power Inlet
  • 120v Outlets
  • Whelen Core Electrical Lighting System
  • Federal Q2B Mechanical Siren
  • Whelen EZScene Lights
  • Whelen Traffic Advisor
DOWNLOAD THE DRAWING (PDF)

UPCOMING DELIVERY

Bradfordville Fire Department — Bradfordville, Florida

DEV-USA 3000 Gallon Tanker

2nd Quarter of 2027 Delivery!

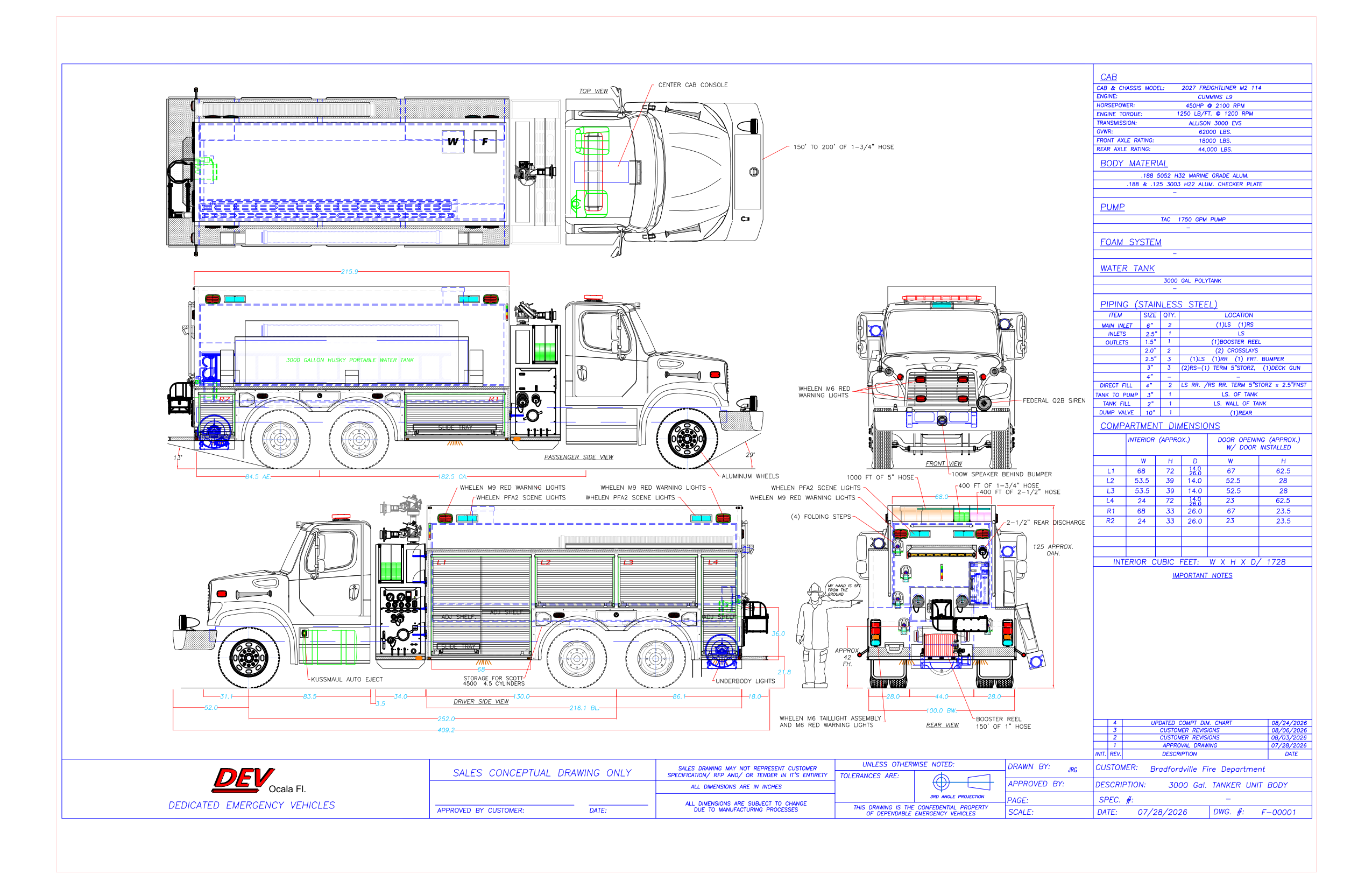

Conceptual drawing of the Bradfordville Fire Department 3000 gallon tanker on a Freightliner M2 114 chassis
Conceptual drawing — click to view the full-size PDF.

Build Highlights

  • 2027 Freightliner M2 114 Chassis
  • Cummins L9 450hp Engine
  • 1250 lb-ft Torque @ 1200 rpm
  • Allison 3000 EVS Transmission
  • 62,000 lb GVWR
  • TAC 1750gpm Fire Pump
  • 3000 Gallon Poly Water Tank
  • 3000 Gallon Husky Portable Water Tank
  • 10″ Rear Dump Valve
  • 2-1/2″ Rear Discharge
  • Marine Grade Aluminum Body
  • Aluminum Checker Plate
  • Booster Reel with 150′ of 1″ Hose
  • Whelen M9 & M6 Red Warning Lights
  • Whelen PFA2 Scene Lights
  • Federal Q2B Siren & 100w Speaker
  • Kussmaul Auto Eject
  • Storage for Scott 4500 4.5 Cylinders
  • Underbody Lights
  • Aluminum Wheels
DOWNLOAD THE DRAWING (PDF)

STOCK UNIT

DEV-USA Stock Unit — Ocala, Florida

DEV-USA 1000 Gallon Midi Pumper

Available for Purchase!

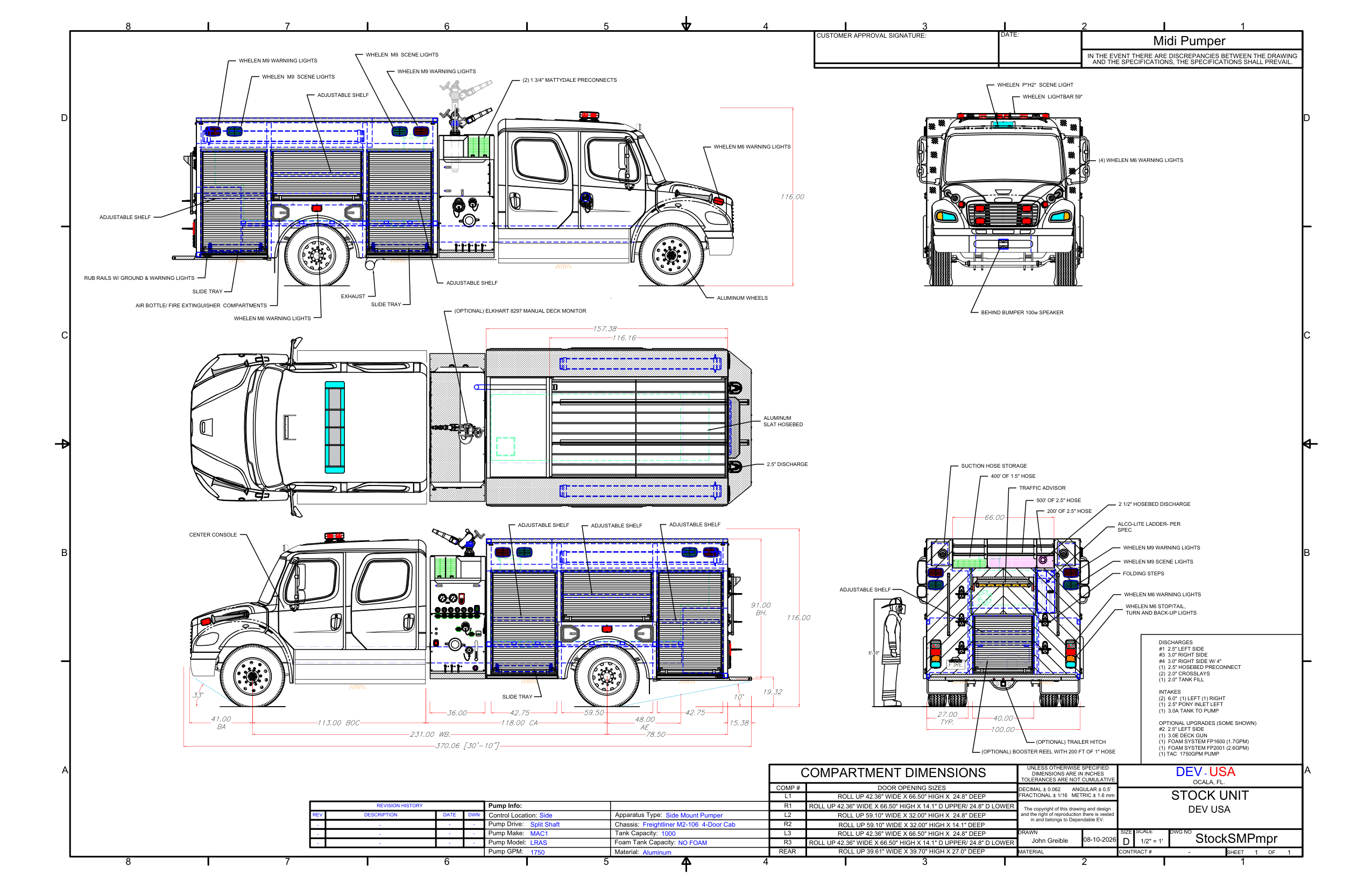

Conceptual drawing of the DEV-USA stock 1000 gallon midi pumper on a Freightliner M2-106 four-door chassis
Conceptual drawing — click to view the full-size PDF.

Build Highlights

  • 2026 Freightliner M2-106 4-Door Chassis
  • MAC1 LRAS 1750gpm Fire Pump
  • Side Mount Pump Configuration
  • 1000 Gallon Water Tank
  • All Aluminum Body
  • Roll-Up Compartment Doors
  • Adjustable Shelves & Slide Trays
  • Aluminum Slat Hosebed
  • Whelen 59″ Lightbar
  • Whelen M9 & M6 Warning Lights
  • Whelen Scene Lights & Traffic Advisor
  • Behind-Bumper 100w Speaker
  • Alco-Lite Ladder
  • Folding Steps & Rub Rails
  • Aluminum Wheels
  • Optional Upgrades Available – Deck Gun, Foam System, Booster Reel
DOWNLOAD THE DRAWING (PDF)

Ready to build yours?

Tell us your operational demands and we will engineer the apparatus that meets them.

REQUEST FOR SPECIFICATIONS
